Custom Autosound Radios

USA-1 65 Mustang

USA-6 68-76 Corvette

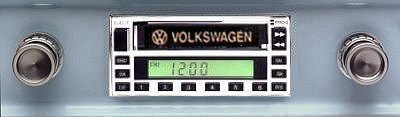

USA-1	AM/FM Stereo Cassette - 200 Watts - Electronic Tuner	$199.00
USA-2	AM/FM Stereo Cassette - 200 Watts - Electronic Tuner	$159.00
USA-5	AM/FM Stereo Cassette - 240 Watts - CD Controller	$289.00
USA-6	AM/FM Stereo with OEM Look - 240 Watts - CD Controller	$229.00

Note - All have Electronic Tuners
USA-6 looks like a manual dial radio until you turn it on.
All radios are 12 volt - negative ground. (converters avail)

Comparison of Features in USA Series
Feature	USA - 1	USA - 2	USA - 5	USA - 6
AM / FM Stereo	x	x	x	x
Power - Watts	200	200	240	240
# of Pre-Sets	30	30	30	30
Auto Reverse Cassette Tape	x		x
Electronic Tuner & Volume Control	x	x	x	x
4 Way Fader	x	x	x	x
Separate Bass & Treble	x		x	x
CD Changer Controller			x	x
RCA Pre-Outs	x		x	x
Fast Forward - Rewind	x		x
Pre-Set Scan	x		x	x
Digital Clock	x	x
Auxiliary Input	x			x
Power Antenna Lead	x	x	x	x
Base Price	$199.00	$159.00	$289.00	$229.00
Note - some models carry $10.00 Special Order Surcharge for certain vehicles

Top

Kenwood Clone Radio

KNW 801 65-66 Mustang

KNW 801 69 Camaro

**For use with Kenwood 10 Disc CD Changer**
KNW - 801 Clone of discontinued Kenwood KRC-3006 Model
AM / FM Stereo Cassette CD Controller 60 Watts Base Price - $289.00 without CD Changer

All radios are 12 volt - negative ground. (converters avail)


KNW 801 - Features For use with Kenwood 10 Disc CD Changer - KNW 800CD
CD Controller	Separate Bass & Treble
High Power 60 Watts	Left & Right Balance
AM / FM Stereo	RCA Pre-out Power Fader
Auto Reverse Cassette	Digital Clock
Metal Tape	Cassette Music Search
Fast Forward & Rewind	18 Station Pre-set
Electronic Tuner	Power Antenna Lead
Tuner Call	Power Fader
European Frequency Capable	Black or Chrome Face

Top

Secret Audio AM/FM Stereo Radio
• AM/FM Stereo • Seek And Scan Tuning
• 4-way Fader • Separate Bass And Treble • 4 Channel RCA Pre-outs
• CD Changer Options - Controlled By The Wireless Remote!!

Secretaudio is a three piece hidden audio system that
offers great flexibility for mounting in any type of vehicle.

Secretaudio is a hidden audio system that offers great flexibility for mounting in any type of vehicle. The main receiver/amplifier unit is usually hidden under the seat, or behind the dash. A 12 ft cord from the Tuner/Amp plugs into a LCD display. A 9' cord connects the Optional CD Changer to the Tuner/Amp.

Included with the system is a flush mount bezel for console or dash mounting. The small dimensions of the flush mount system allow you to install the LCD display almost anywhere. The LCD also comes with a bracket mount for easy installation in the glove box, under the dash, in the ashtray, sun visor, console, or wherever you choose. Since its only 3/4" deep its especially handy for custom or street rod applications where there may be wiring or ducting routed behind the panels you wish to utilize for mounting. When your installation is finished you'll be rewarded with a quality professionally installed look.

Secretaudio SS with RF Remote

SECRET AUDIO - AM/FM STEREO

$229.95

SECRET AUDIO - AM/FM STEREO
with CD CHANGER CD SPECS
$479.95

LCD DISPLAY SWIVEL or FLUSH MOUNT	REMOTE RF	RECEIVER HIDE ALMOST ANYWHERE
Secretaudio with RF Remote

Stealth, Power, Function

Secretaudio Features:

SS Model - 140 Watts (4 X 35)
AM/FM Stereo
Wireless Remote Control
4-way Fader
Separate Bass And Treble
Seek And Scan Tuning
Dual Rca Pre-outs
Cd Changer Options - Controlled By The Wireless Remote!!
10 Disc Changer Optional - $259.00 (SS Model Only)
12' Cable Between The Lcd And Tuner/amp Pack
15' Cable To Optional CD Changer
All Components can be completely hidden.

To view installations of Secret Audio components click here - Installs

System Includes:	Main Receiver / Amplifier unit - hidden under seat or elsewhere
	LCD Display offers unlimited mounting options
	Wireless Remote Control
Base Price:	SS - $239.95 with RF Remote

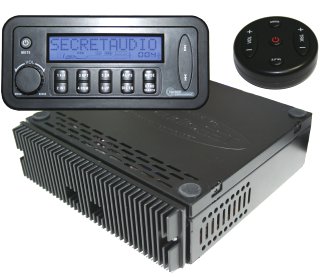

Secretaudio - Components

Main Receiver / Amplifier Unit

Usually hidden under the seat or behind the dash

A 12 ft cord from this unit goes to a LCD display

A 15 ft cord to optional CD Changer

RF Unit is 6 1/2" wide x 1 3/8" high x 5 1/2" deep

LCD Display

Small dimensions of the LCD display offers unlimited mounting options

LCD is 1.5" high x 4.125" wide x .75" deep

Can be mounted in the glove box, ash tray, sun visor, console or?

Included is a flush mount bezel for console or dash mounting

Also included is a swivel bracket for under dash or surface mounting

Wireless Remote Control

SS Model uses Radio Frequency (RF) - don't have to point at the display.

RF remote will control all functions of the system from up to 40 ft. away.
