How to tell whether yours has a 28 or 31 spline axle.
This method works for pre-1971 axles, after that a few 31 splines
were produced with the concave oval in the center of the flange.
Therefore, the only foolproof way is to remove the axle and count.
Note all 8 inch units use 28 spline axles

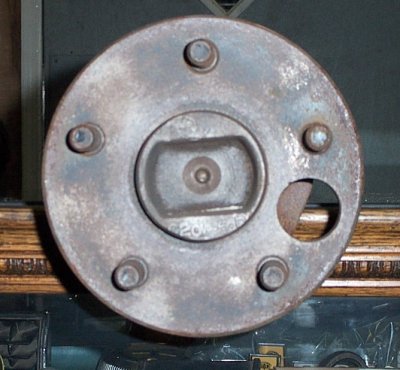

28 Spline Axle

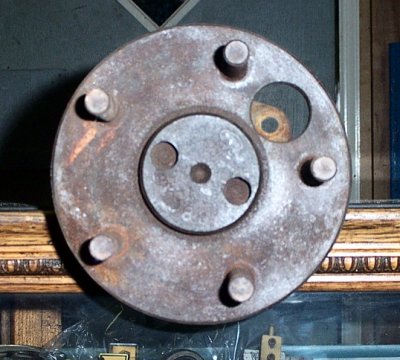

31 Spline Axle
Note the concave oval area
in center of axle flange.
Early 28 Spline axles are tapered.
Counter sunk holes in center
indicate a 31 spline axle.
31 Spline axles are uniform in diameter.

How to determine the width of the yoke.
Shown is a 3 1/ 4" Saddle (1310)

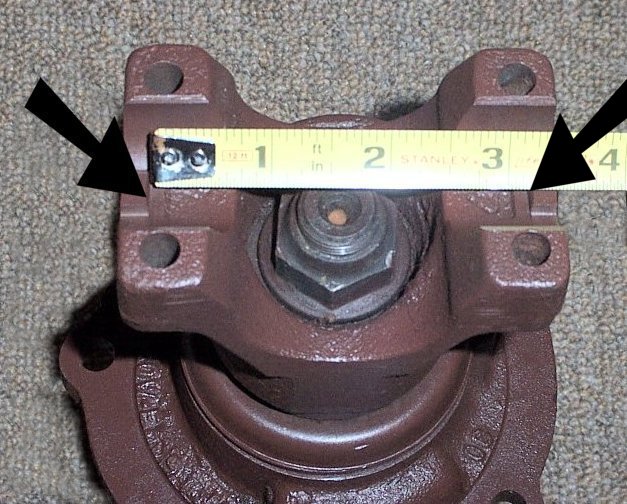

You will be measuring the saddle width (where the u-joint cups fit into the yoke).
The measurement will be either 3 1/4" (1310) or 3 5/8" (1330) or (1350)
The 1350 almost never found in production car driveshafts.
The 1310 yoke is the most common.
Yoke #
Width
Cup Diameter of U-Joint
1310 Yoke
Width 3 1/4"
   1/16"
1330 Yoke
Width 3 5/8"
   1/16" and / or 1 1/8 inch"
1350 Yoke
Width 3 5/8"
   1 3/16"

How to determine whether you have a
Standard or Daytona pinion support.

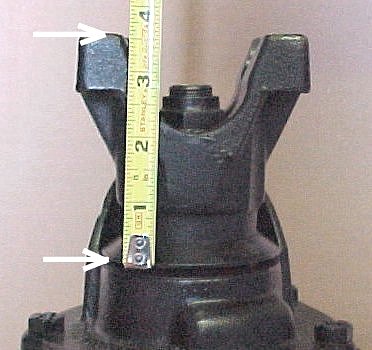

3 1/2 " Yoke - Daytona Support

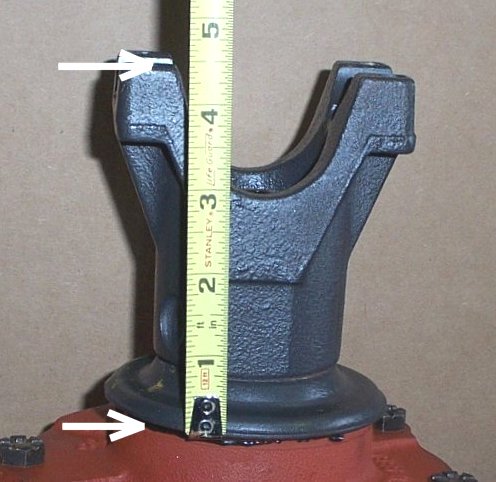

4 1/2 " Yoke - Standard Support
The exposed portion of the companion yoke will measure either 3 1/2" or 4 1/2".
The measurement is taken with the companion flange installed in the housing.
